Advantest R3267 Spectrum Analyzer 100Hz – 8GMhz

アドバンテスト  スペクトラムアナライザ  R3267  100 Hz-8GMHz

愛德萬頻譜分析儀  R3267  100 Hz-8GMHz

這是一台很棒的頻譜分析儀，它的頻率範圍算是寬廣，含蓋了我常用的測試範圍

自我校正也算快速，雖然如今已不算先進，但也能將畫面直接存成檔案，很方便。

內建一些方便的功能

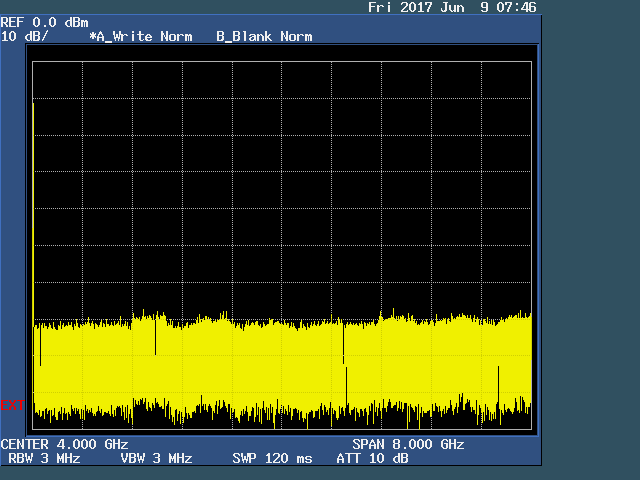

Base Frequency: 100 Hz Max Frequency: 8 GHz

Advantest R3267 Spectrum Analyzer and Modulation Analyzer.

Note – This spectrum analyzer is also available with a variety of options so please contact Test Equipment Connection should you need a specific configuration.

• Excellent RF performance
• Options for all major digital communication standards
• Baseband measurements possible with IQ inputs
• Customer friendly and easy to use due to automized pushbutton measurements

High signal purity (-145 dBc/Hz @ 5MHz offset, 2GHz) , high dynamic range and low noise floor (-154dBm/Hz @ 2GHz) are some of the outstanding specification on this analyzer series meeting the high demands for current and future telecommunication systems (2nd and 3rd generation).

Equipped with a wide range of resolution filters (1Hz to 10MHz) and a fast time domain sweep with sweeptimes between 1 Micros and 1000s. Equipped with a 3.5″ floppy disc drive (MS-DOS) as standard and 6.5″ TFT color liquid crystal display with a refresh rate of 20traces/s. GPIB and RS232 interfaces , parallel ports and a VGA output are implemented as well. Several automized pushbutton measurements are available:

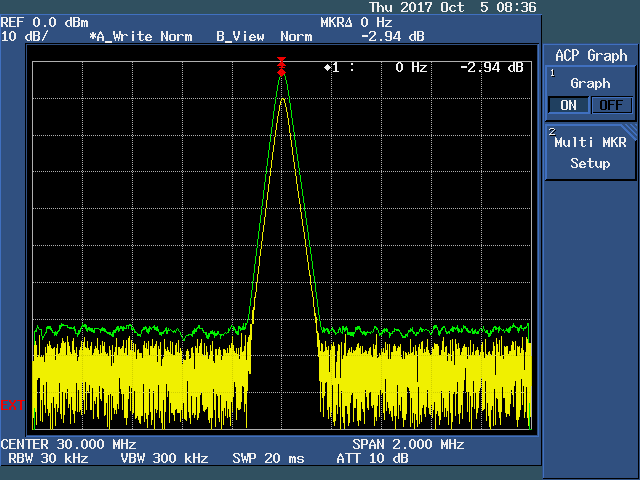

• ACP
• OBW

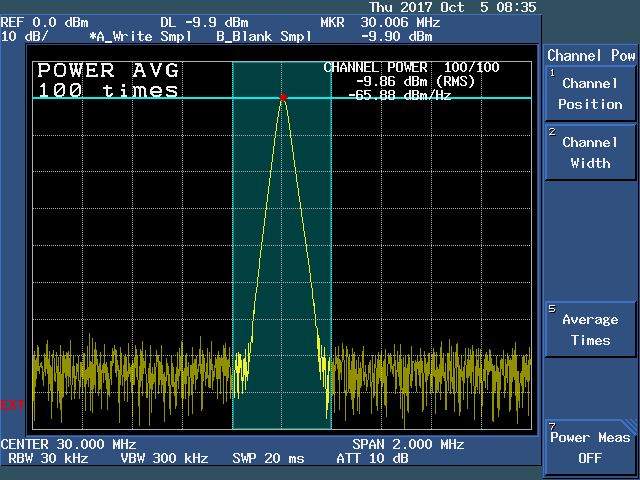

• Power (Channel Power, Total Power , Average Power)
• Harmonics and Spurious
• Phase Noise
• Intermodulation , two tone test
• Frequency Counter

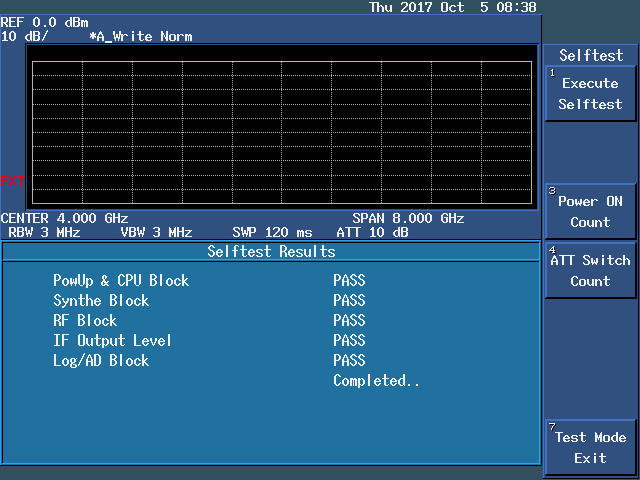

雖然舊了，但仍自驗通過功能正常～
