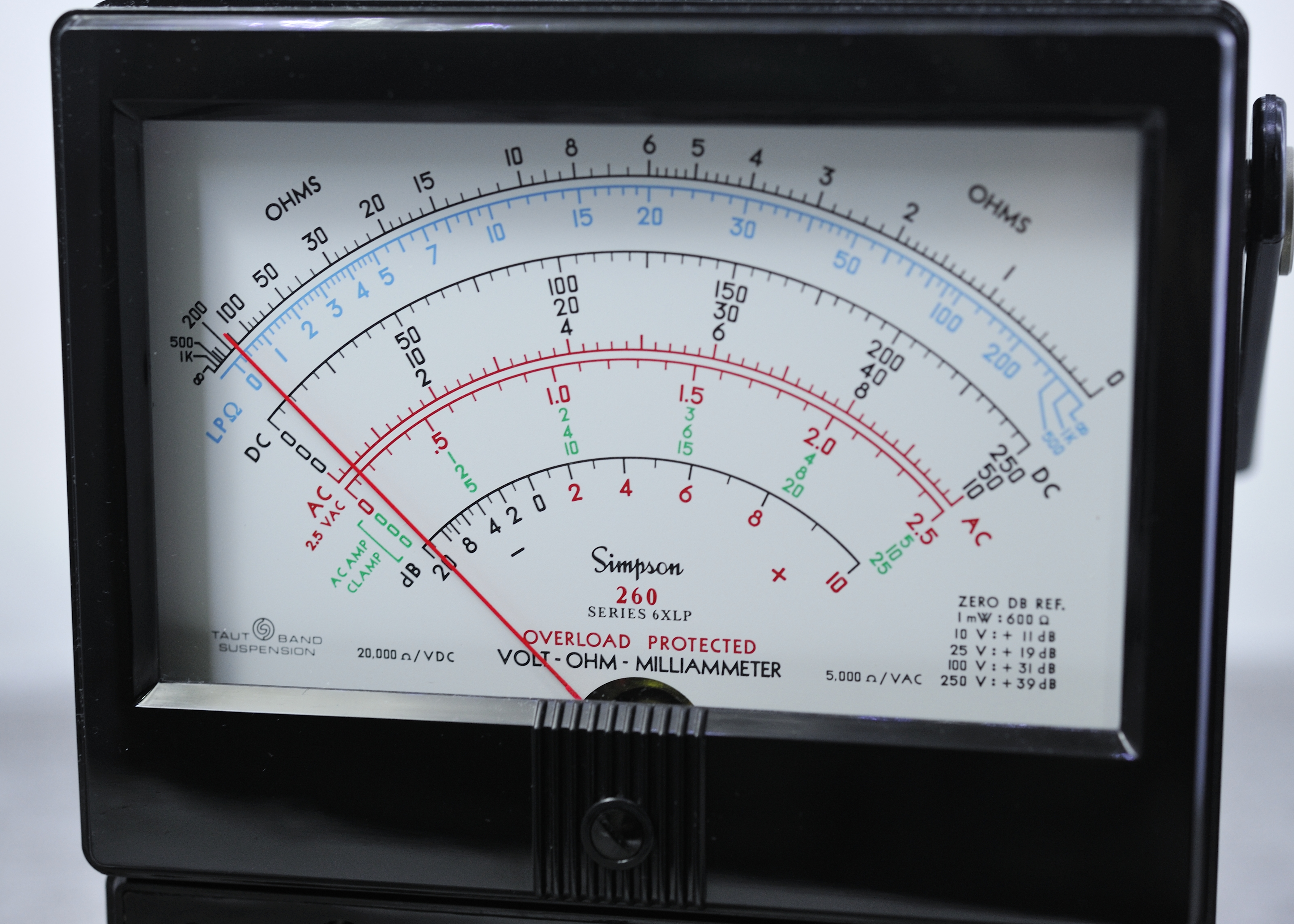

Simpson 260 volt-ohm-milliammeter Series 6XLP

辛普森 260 型 系列6XLP 三用電表，具有過流保護電路

Technical Data

1. DC VOLTAGE

Ranges (full scale): 250 mV, 1.0V, 2.5V, 10V, 25V, 100V, 250V, 500V and 1000V
Accuracy: ±2% of full scale on all ranges
Sensitivity: 20,000
/V

2. AC VOLTAGE
Ranges (full scale): 2.5V, 10V, 25V, 100V, 250V, 500V and 1000V
Accuracy: ±3% of full scale on all ranges
Sensitivity: 5000
/V
Frequency Response: See curve in Figure 4-1

3. OHMS CONVENTIONAL

Ranges: RX1, RX100, RX1k and RX10k
Ohms Center: 6, 600, 6000 and 60k

Max. Scale Reading: 1000
(RX1)
Accuracy: ±2.5° of an arc on the RX1 range; ±2.0° of arc on
all other ranges.  The nominal open-circuit volt-
age for all ranges up to RX1k is 1.5V.  The RX10k
range has an open circuit voltage of 9V.  The maxi-
mum current drawn from the 1.5V battery is 250
mA (RX1 with test leads shorted).

4. LOW POWER OHMS

Ranges: RX1 and RX10
Ohms Center: 20 and 200

Max. Scale Reading: 1000
(RX1)
Accuracy: ±2.5° of arc. The maximum open circuit voltage
for the low power ohms ranges is 100 mV and the
maximum measuring power is 0.125 mW. The
battery quiescent current is 4.3 mA at RX1 and
0.43 mA at RX10.

比起260 SERIES 6 , XL型多了Low Power OHMS檔, 不知道是否因為如此

在二手市場它的價格通常比較高(但我還是比較喜歡一般型的260)

已訂購它的新庫存表頭, 希望將它修愎完整功能.
